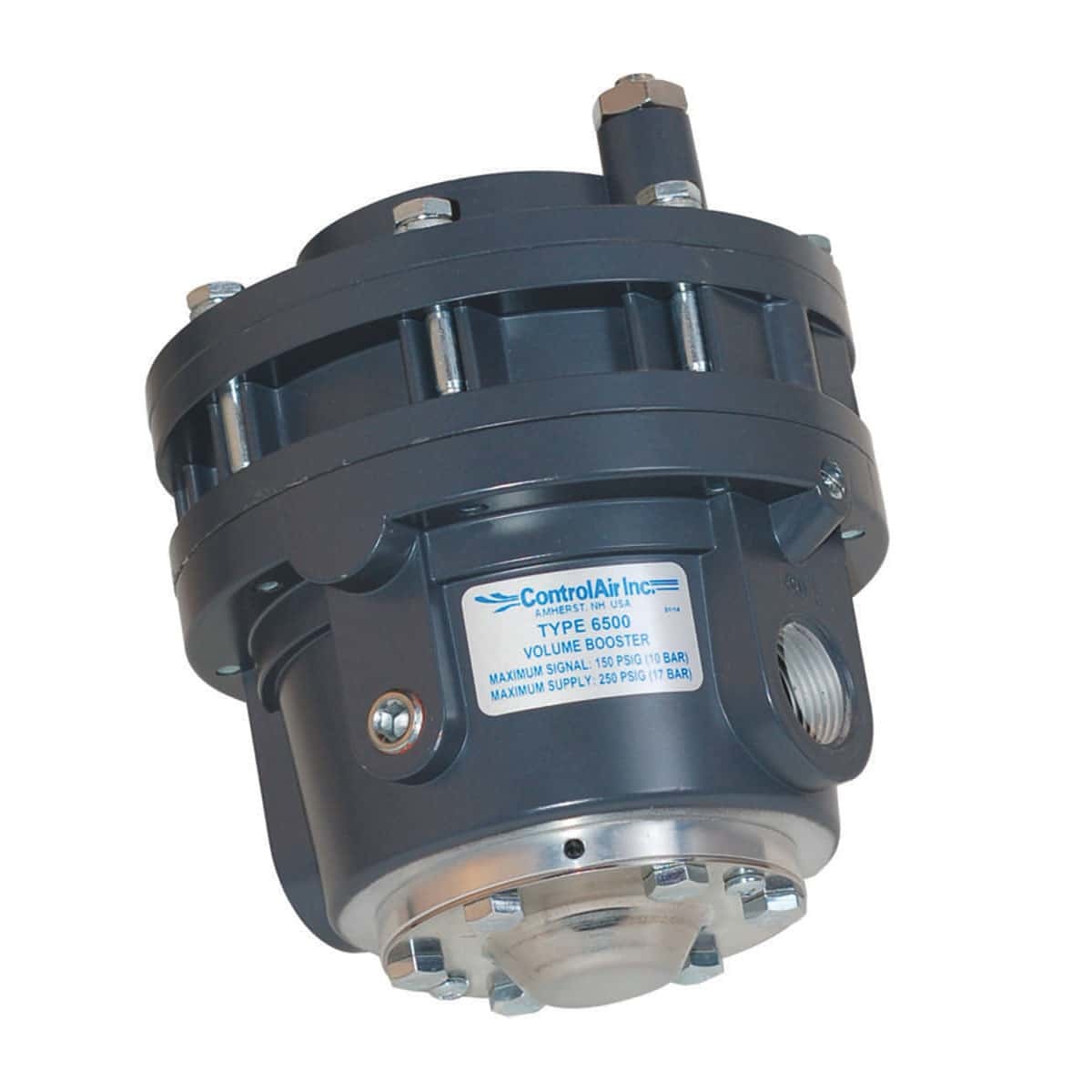

Volume Booster, large flow capacity

- acticle code = CONT-6500-EA
- code CONT = Manufacturer
- code 6500 = Aluminum Volume Booster, large flow capacity *
* Signal/Output Ratio 1:1
* Supply Pressure 17.0 BAR Maximum
* Signal Pressure 10.0 BAR Maximum
* Temperature Limits -40 to +93 degrees Celsius
* Maximum Flow Coefficients (Cv) ¾" Forward Exhaust 8.0
* Exhaust Capacity (0.35 BAR above setpoint) ¾" 4,245 NL/min
* Output Accuracy 2.0% of span
* Deadband Under 0.01 BAR
* Suppy Pressure Effect 0.02 BAR for a 7 BAR change
* Signal Port 1/4" NPT
* Supply/Output Port 3/4" NPT
* Exhaust Port 3/4" NPT
* Gauge Port (2) 1/4" NPT
- code EA = 3/4"NPT Tapped Exhaust

Levertijd: 1 < 2 werkdagen
Download technical information
Bruto prijs: €839,00% Korting
Netto prijs: €839,00
Voorraad: 1
