- article code = BORU-LKN-3612
- code BORU = Manufacturer
- code LKN = Mini Horizontal Float Level Switch *
* electric connection: DIN43650 (EN175301-803) connector (NEMA 4 / IP65)
* max. switching voltage : 240 VAC or 200 VDC
* max. switching current : 0,5 Amp.
* max. carry current : 1 A
* max. contact rating VA : 50 W
* switch mode : SPST
- code 3612 = process side *

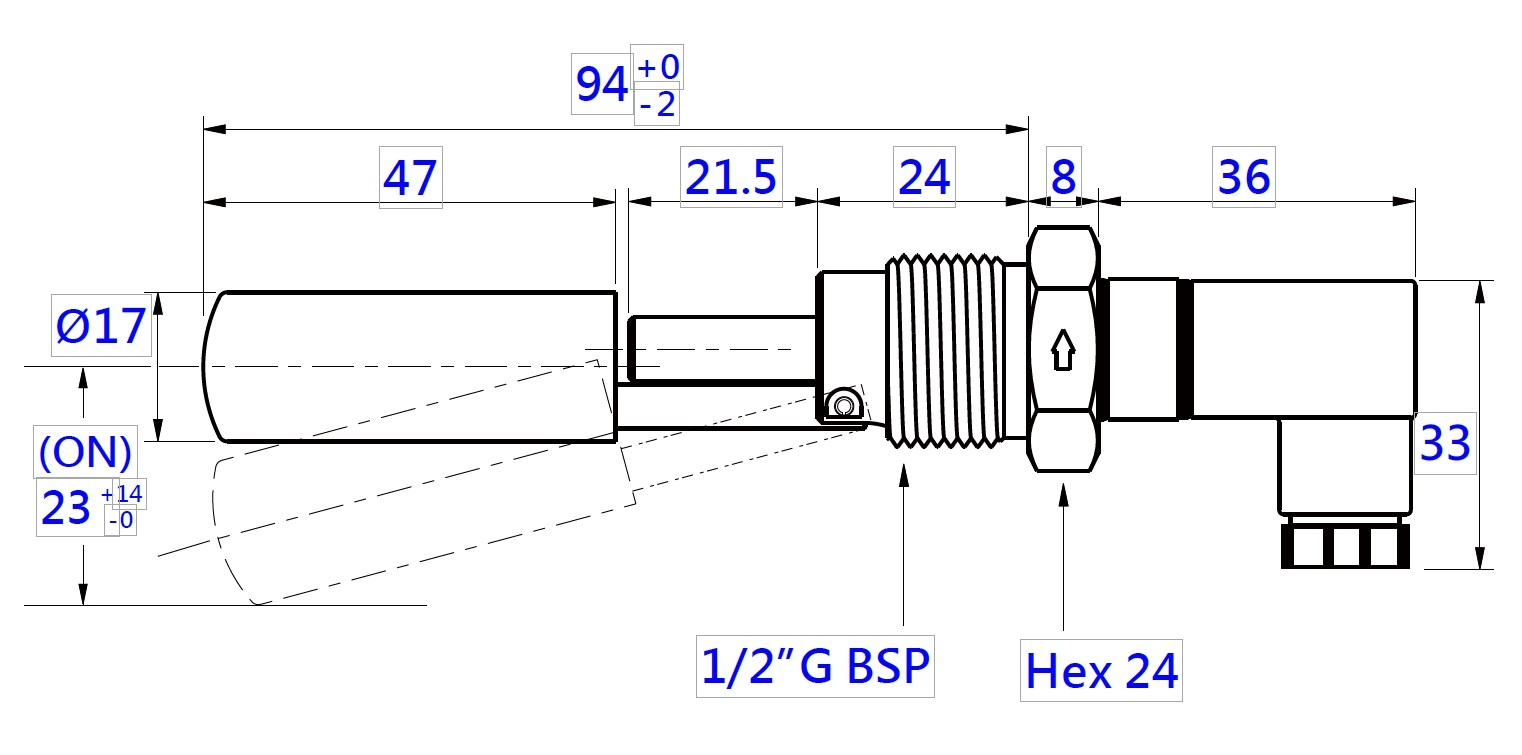

* float & stem Ø17x47; AISI 316
* process connection G½" (BSP-M)
* operating temperature:-10 to +120 degrees Celsius
* float Specific Gravity (S. G.) 0.7
* operating pressure 10 bar
